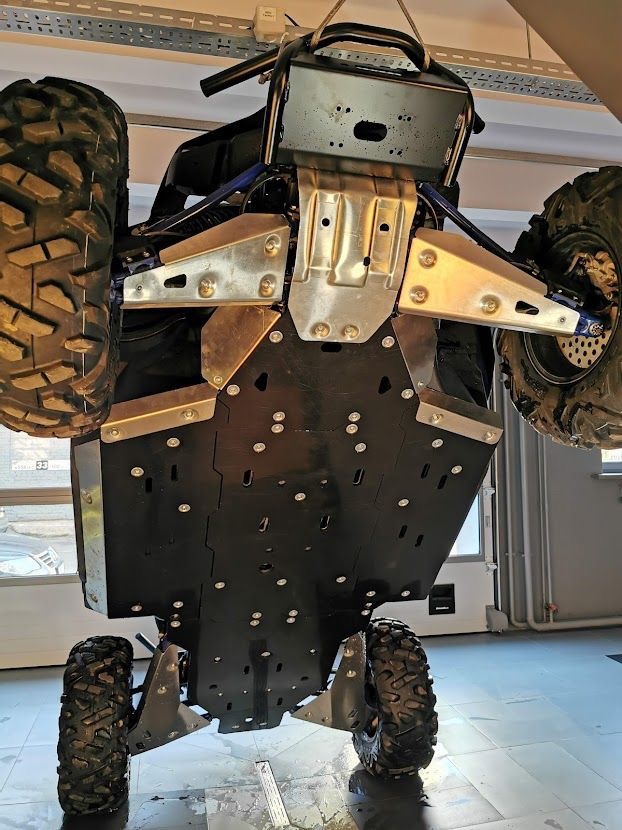

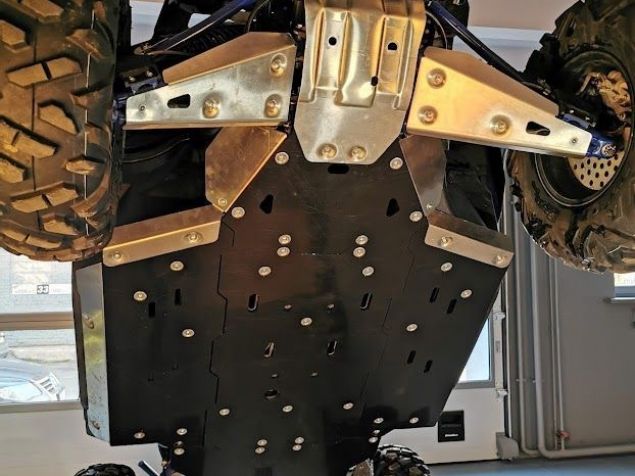

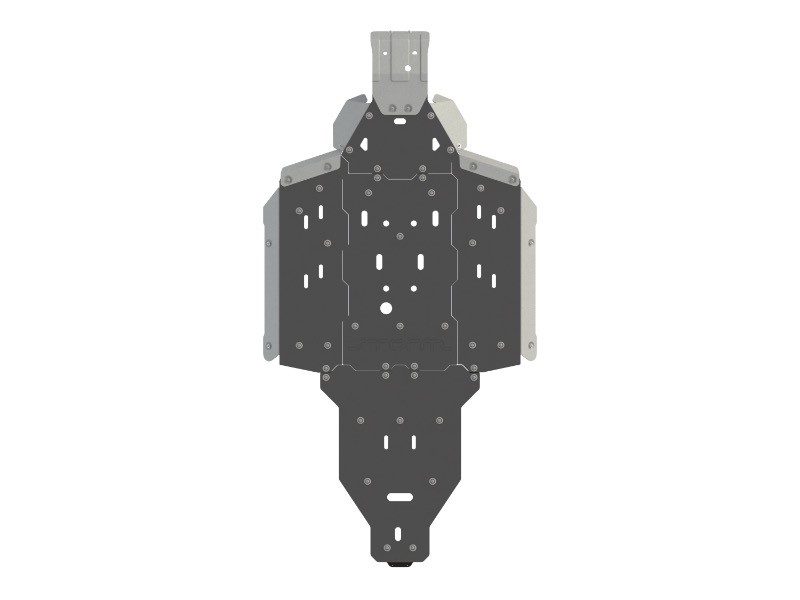

A full underbody plate for the Yamaha YXZ1000 (2019+) that uses two materials for two different jobs: a 10 mm HDPE centre with 4 mm aluminium reinforcement at the structural zones. The reasoning is worth understanding, because it is the opposite of what a thicker aluminium plate would do. HDPE is slippery. A machine grounded on a rock with a plastic centre slides off it; the same machine on aluminium grabs and stops. On a sport buggy driven at speed that is the difference between carrying on and being stuck. Aluminium goes where sliding is not the point — the reinforced zones that take direct impact and carry mounting loads. Plastic where you want it to slide, metal where you want it to hold. Total weight is 29 kg, which is what full-coverage underbody protection on a machine this size costs. Bolt-on, all hardware included. SKU: 40.4996 Rocky terrain, where the ability to slide off an obstacle matters as much as the ability to survive hitting it. Racing, where being stopped by the underside is a worse outcome than being damaged by it. Hard off-road use generally, on a machine whose ground clearance is set up for speed rather than for crawling. Fits the Yamaha YXZ1000 and YXZ1000 2019+. Suspension protection for the same machine: A-arm skid plate set. Also available: aluminium roof and cargo rack platform.
Hybrid Skid Plate for Yamaha YXZ1000 (2019+)
Key Features
Use Cases
Compatibility
Technical Specifications
Product type Hybrid full skid plate SKU / MPN 40.4996 Centre section HDPE, 10 mm Reinforcement Aluminium, 4 mm, at structural zones Weight 29 kg (63.93 lbs) Protects Frame and undercarriage Mounting Bolt-on, all hardware included Fits Yamaha YXZ1000, YXZ1000 2019+
Complete Set
SKU: 40.4996
