Suspension guards for the Yamaha YXZ1000 from 2019 onward, in 4 mm aluminium, covering front and rear A-arms. A belly plate protects what is under the frame. The A-arms are not under the frame — they are outboard of it, low, and forward, which means they meet obstacles the belly plate is nowhere near. On a machine built for speed the consequence is worse than a scrape. A bent arm changes the suspension geometry, and geometry on a YXZ is what the whole chassis is set up around. The set weighs 5.64 kg for front and rear together, and all mounting hardware is included. SKU: 40.4997 Rock and root ground, where the arms reach obstacles well outboard of the frame. Racing and aggressive trail use, where a bent arm ends the day and the setup with it. Desert running, where hard landings put the arms through their full travel repeatedly. Fits the Yamaha YXZ1000, 2019 and newer. Underbody protection for the same machine: hybrid skid plate. Also available: aluminium roof and cargo rack platform.

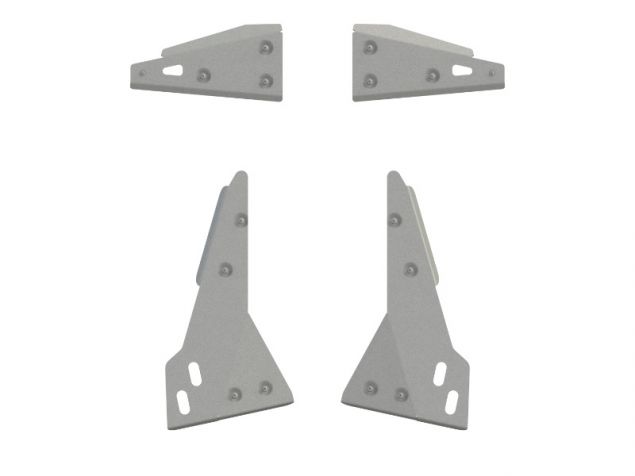

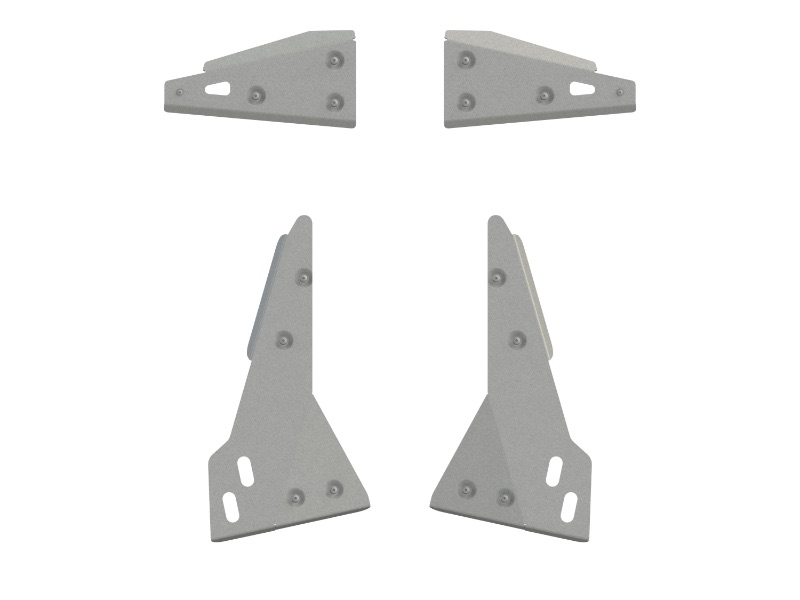

A-Arm Skid Plate Set for Yamaha YXZ1000 (2019+)
Key Features
Use Cases
Compatibility
Technical Specifications
Product type A-arm skid plate set SKU / MPN 40.4997 Material Aluminium Plate thickness 4 mm Weight 5.64 kg (12.43 lbs) Coverage Front and rear A-arms Mounting Bolt-on, all hardware included Fits Yamaha YXZ1000, 2019+
Complete Set
SKU: 40.4997
